600V Handheld Portable Digital Multimeter Autorange Resistance Battery 2000 Counts

Dongguan Habotest Instrument Technology Co.,Ltd
Contact Now

600V Handheld Portable Digital Multimeter Autorange Resistance Battery 2000 Counts

Place of Origin : Guangdong, China (Mainland)

Brand Name : HABO

Model Number : HT830L

Supply Ability : 10000 Unit/Units per Month

Packaging Details : Standard Export Carton 50pcs per carton

MOQ : 500 Unit/Units

Price : $4.95 - $5.95 / Units

Measuring Current Range : handheld digital multimeter

Measuring Voltage Range : 0~600V AC DC

Measuring Resistance Range : 200~20M

Measuring Capacitance Range : N/A

Dimensions : 151*75*48 mm

Battery Test : 1.5V / 9V

Contact Now

600V Auto Range Digital Multimeter Resistance Battery Test Function 2000 counts





HT830L Digital Multimeter



New Generation of Multimeter

SMT Technology

Small Meter with most of the functions

Battery test, Data Hold.

Manual Range

Worklight Available

High quanlity high Accurancy with affortable price

Operate by 2 x 1.5V AAA batteries easy to get anywhere





HT830L Digital multimeter



Function

Range

Accuracy



DC Voltage

200mV/2V/20V/200V/600V

±(0.5%+3)

400mV/4V/40V/400V/600V



600mV/6V/60V/600V



AC Voltage

200V/600V

±(1.0%+3)

400mV/4V/40V/400V/600V



600mV/6V/60V/600V



DC Current

20mA/200mA

±(1.2%+3)

200mA



400uA/4000uA/40mA/400mA



600uA/6000uA/60mA/600mA



10A

±(2.0%+3)

AC Current

200mA



400uA/4000uA/40mA/400mA



600uA/6000uA/60mA/600mA



10A



Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0%+3)

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ



600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ



Capacitance

60nF/600nF/6μF/60μF/600μF/6mF/60mF



Frequency

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz



Duty

1%~99%



Display

2000 Counts

Auto/Manual range

Manual

Live test



NCV



Diode test

Yes

Continuity

Yes

Max data hold



data hold

Yes

True RMS



bandwidth

40~400Hz

Battery test (1.5V/9V)

Yes

Low battery indication

Yes

Auto power off

Yes

Back light

Yes

Work light



Power

2x1.5V AAA Battery

Weight



Size



Safety Rating

EN61010-2-030 EN61010-2-033 CAT III 600V

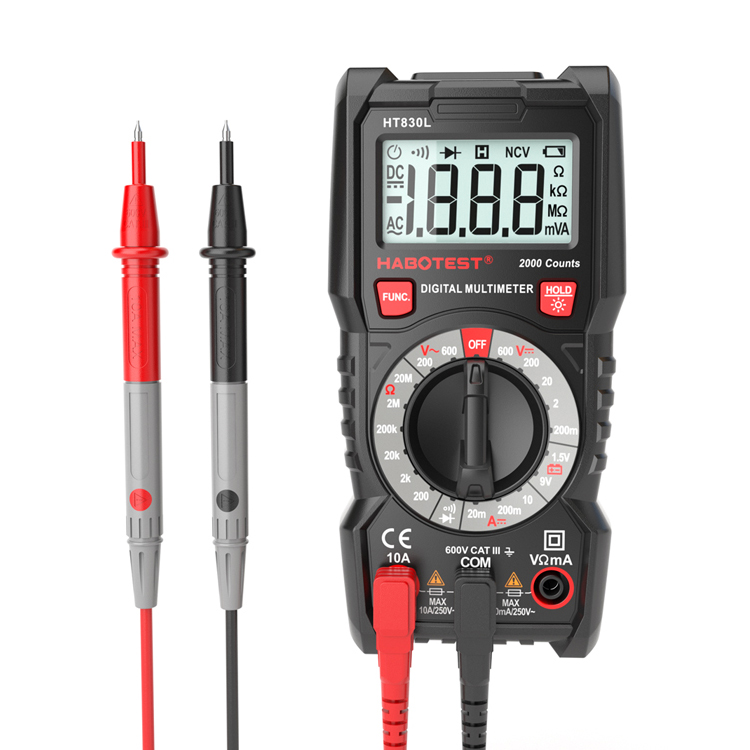

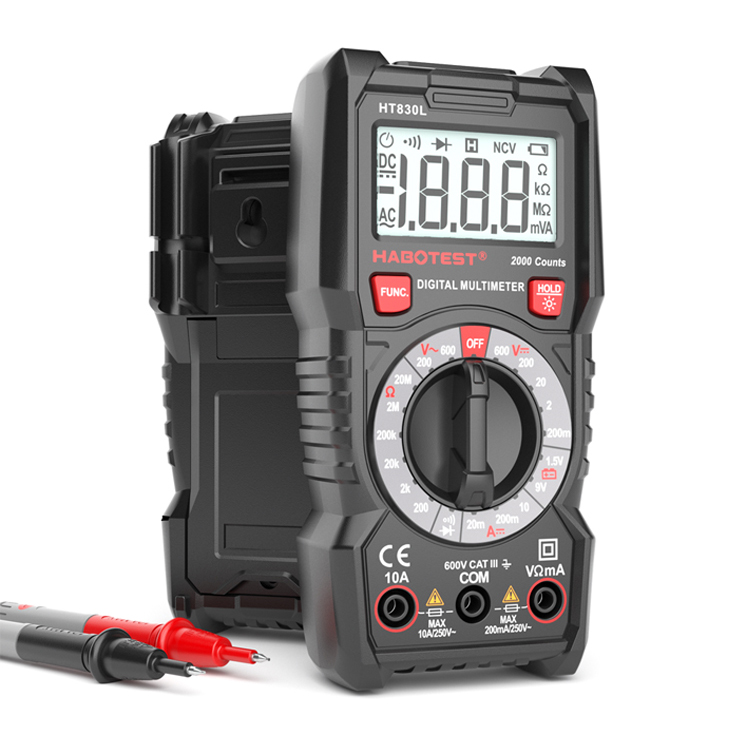

Product Images

600V Handheld Portable Digital Multimeter Autorange Resistance Battery 2000 Counts600V Handheld Portable Digital Multimeter Autorange Resistance Battery 2000 Counts

600V Handheld Portable Digital Multimeter Autorange Resistance Battery 2000 Counts600V Handheld Portable Digital Multimeter Autorange Resistance Battery 2000 Counts
